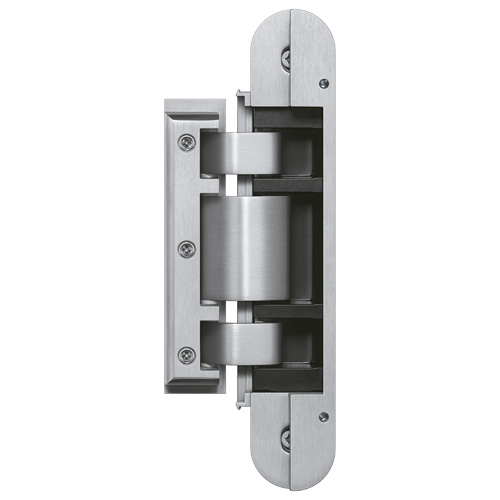

Product Description
Product Features:
- For flush glass doors
- ESG glass thickness 8 – 10 mm
- Tested for interior rooms up to 50°C ambient temperature
- No drilling of door leaf
- For timber, steel, or aluminium frames
- Continuous side adjustment (+3.0 / -2.0 mm)
- Continuous height adjustment with additional fine tune adjustment (+/- 1.0 mm)
- Maintenance-free slide bearings
- Rebate width 11 – 15 mm
Technical Details:
- Load capacity – 60.0 kg

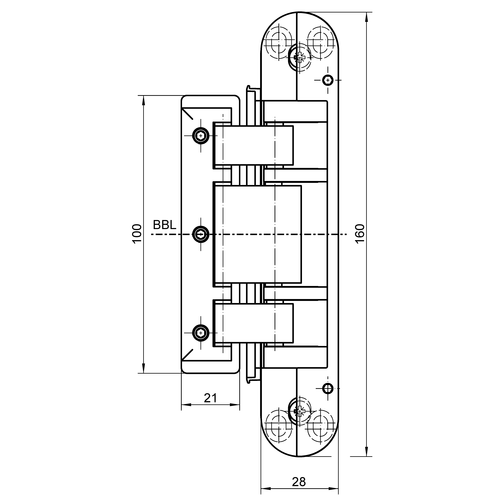

- Overall length – 160.0 mm
- Width (frame part) – 28.0 mm
- Cutter diameter – 24.0 mm
- Collar ring diameter – 30.0 mm
- Opening angle – 180°
Suitable for:
- Type of door leaf – Glass
- Rebate – Rebated / Unrebated

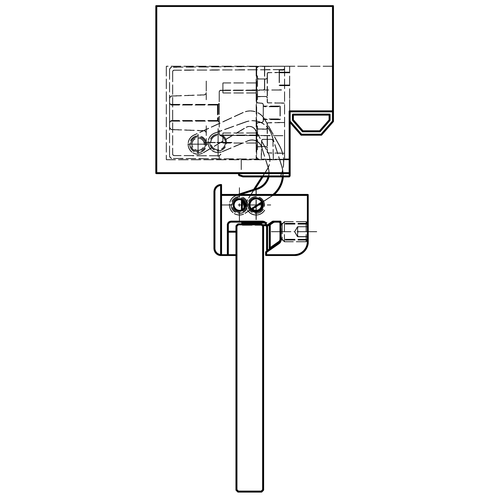

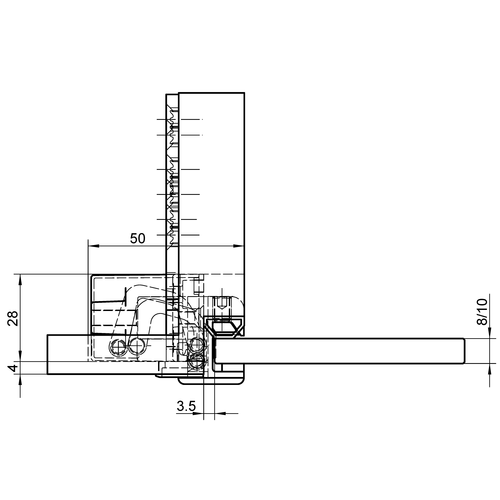

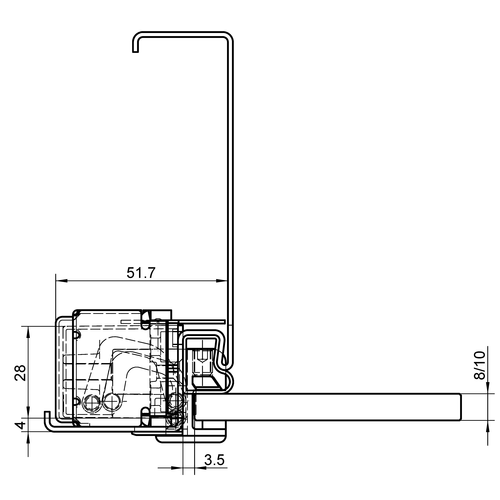

- Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame
Hinges are priced as singles.
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).

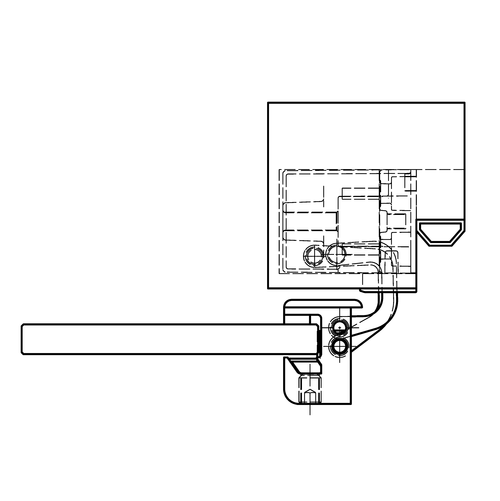

With an opening position of 180° the door may have to be fixed additionally.
Fixings included.
TEG 310 2D 60 Datasheet ⬀
TEG 310 2D 60 Product Selector ⬀
