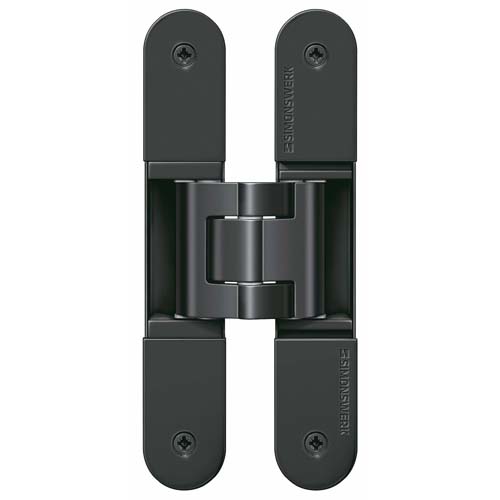

Simonswerk Tectus TE 540 3D A8 FR Concealed Hinge

£148.30£232.75



Fire Rated – with integrated intumescent kit for unrebated heavy-duty doors with claddings up to 8mm on both sides



SKU: TE 540 3D A8 FR Categories: , , Tag:

Product Description

Product Features:

  • With integrated intumescent kit
  • Cladding up to 8 mm
  • Concealed hinge system
  • For timber, steel, or aluminium frames
  • For unrebated heavy-duty doors
  • Sideways closed hinge body for a homogeneous mortise appearance
  • 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
  • Maintenance-free slide bearings

Technical Details:

  • Load capacity – 100.0 kg

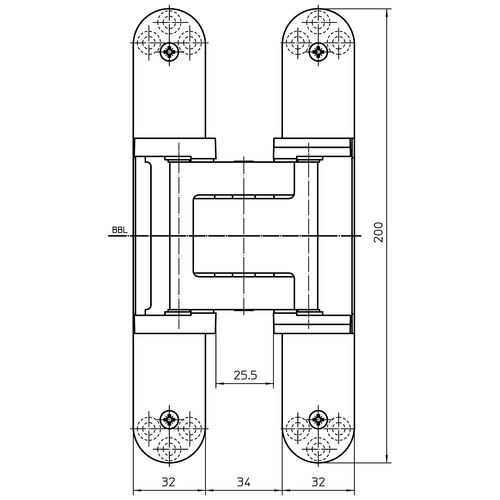

  • Overall length – 200.0 mm
  • Width (door part) – 32.0 mm
  • Width (frame part) – 32.0 mm
  • Cutter diameter – 24.0 mm
  • Collar ring diameter – 30.0 mm

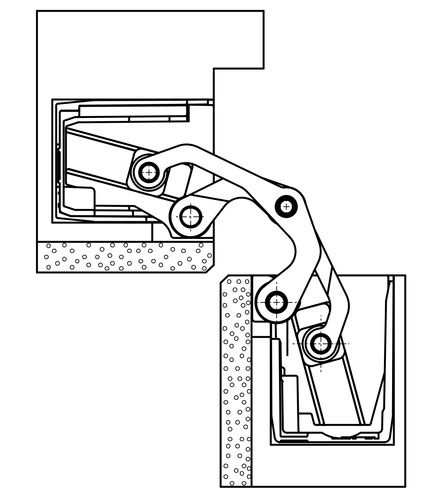

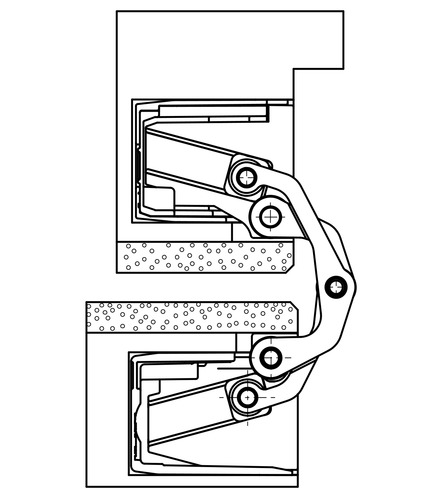

  • Opening angle – 180°

Suitable for:

  • Type of door leaf – Timber, Metal
  • Rebate – Unrebated

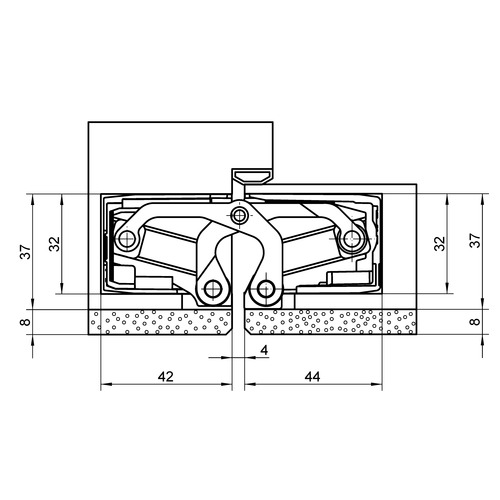

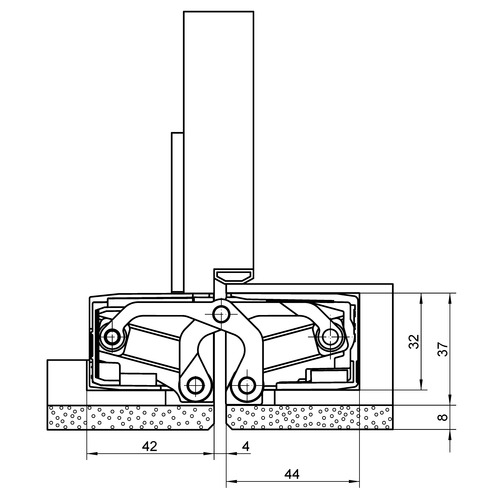

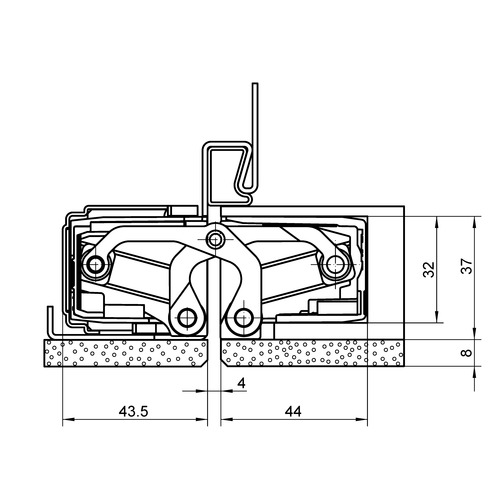

  • Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame

Hinges are priced as singles.
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
With an opening position of 180° the door may have to be fixed additionally.
Fixings included.

TECTUS A8   Datasheet ⬀
TECTUS FR   Datasheet ⬀
TE 540 3D A8 FR   Datasheet ⬀
TE 540 3D A8 FR   Product Selector ⬀

Read more

Estimated delivery time between 2-3 working days.
