Product Description

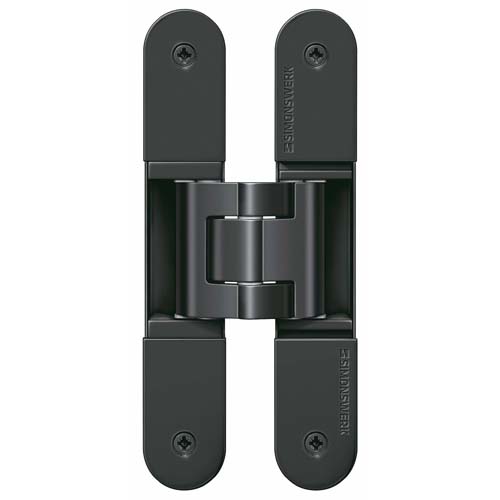

Crafted from high-quality materials, the Tectus TE 540 3D Concealed Hinge offers incredible durability and longevity, making it a reliable choice for both residential and commercial applications. It also features a unique 3D adjustment system, which allows for precise and effortless adjustments in all three dimensions: height, depth, and lateral.
Installation of the Tectus TE 540 3D Concealed Hinge is simple and straightforward, whether you are renovating your home or outfitting a new commercial space, the Tectus TE 540 3D Concealed Hinge is the perfect solution for achieving a clean and modern look without sacrificing performance.
Product Features:
- Completely concealed hinge system
- For timber, steel, or aluminium frames
- For unrebated heavy-duty doors
- Sideways closed hinge body for a homogeneous mortise appearance
- 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- Maintenance-free slide bearings
Technical Details:
- Load capacity – 120.0 kg

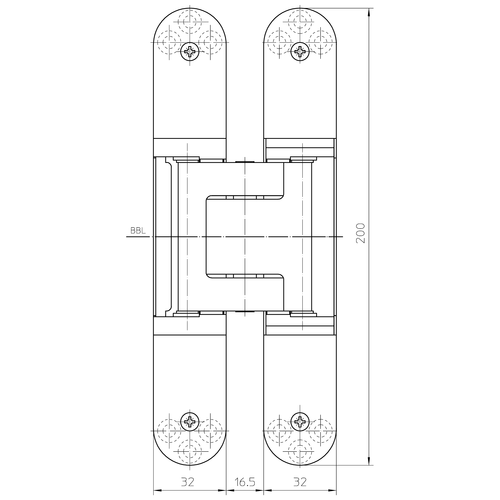

- Overall length – 200.0 mm
- Width (door part) – 32.0 mm
- Width (frame part) – 32.0 mm
- Cutter diameter – 24.0 mm
- Collar ring diameter – 30.0 mm

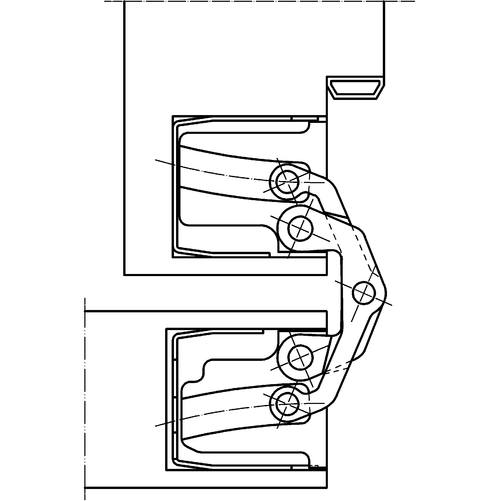

- Opening angle – 180°
Suitable for:
- Type of door leaf – Timber
- Rebate – Unrebated

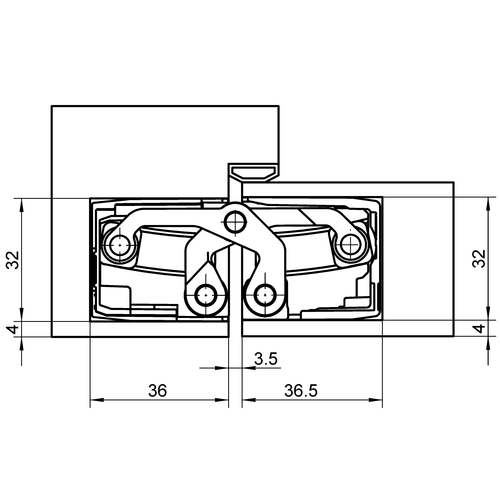

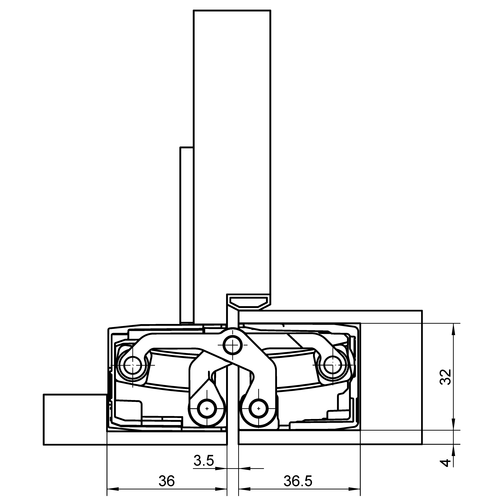

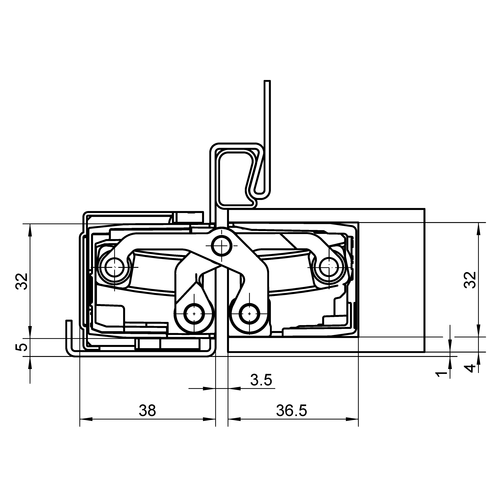

- Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame
Available in a range of finishes – see drop down box
Hinges are priced as singles.
The load capacity mentioned refers to the use of 2 hinges per door leaf.
Available in a range of finishes.
Fixings included.
TE 540 3D Datasheet ⬀
TE 540 3D Product Selector ⬀
Estimated delivery time between 2-3 working days.
