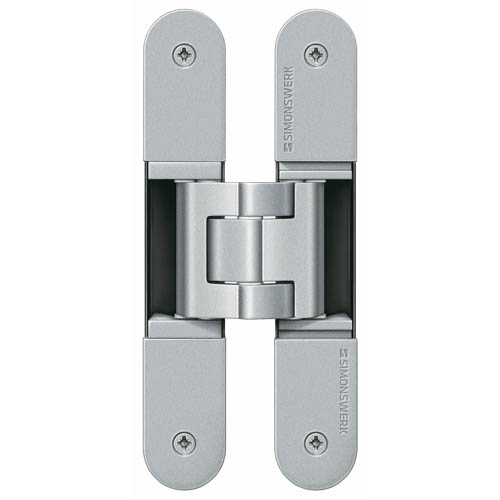

Product Description
Product Features:
- With integrated intumescent kit
- Concealed hinge system
- For timber, steel, or aluminium frames
- For unrebated residential and heavy-duty doors
- Sideways closed hinge body for a homogeneous mortise appearance
- 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- Maintenance-free slide bearings
Technical Details:
- Load capacity – 80.0 kg

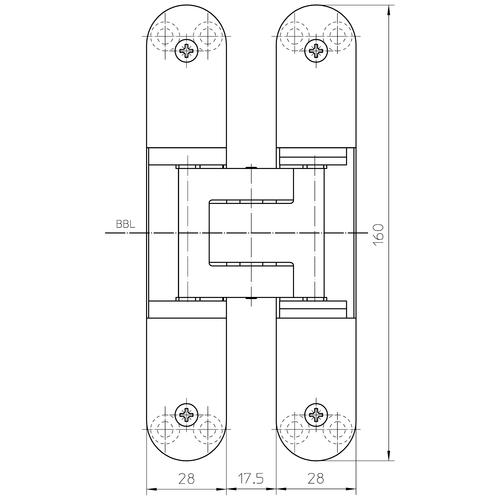

- Overall length – 160.0 mm
- Width (door part) – 28.0 mm
- Width (frame part) – 28.0 mm
- Cutter diameter – 24.0 mm
- Collar ring diameter – 30.0 mm
- Opening angle – 180°
Suitable for:
- Type of door leaf – Timber, Metal
- Rebate – Unrebated
- Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame
Hinges are priced as singles.
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
With an opening position of 180° the door may have to be fixed additionally.
Fixings included.
TECTUS FR Datasheet ⬀
TE 340 3D FR Datasheet ⬀
TE 340 3D FR Product Selector ⬀
Estimated delivery time between 2-3 working days.
