Product Description
Tectus TE 340 3D Energy Concealed Hinge.
Product Features:
- With permanent energy transfer
- Individual connection adapter options
- Completely concealed hinge system
- For timber, steel, or aluminium frames
- For unrebated residential and heavy-duty doors
- 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- Maintenance-free slide bearings

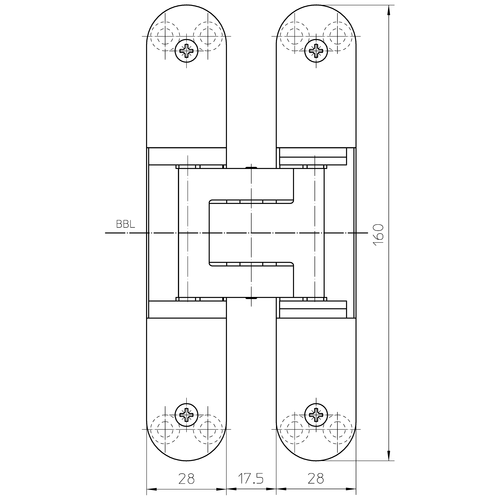

Technical Details:
- Load capacity – 80.0 kg
- Overall length – 160.0 mm
- Width (door part) – 28.0 mm
- Width (frame part) – 28.0 mm
- Cutter diameter – 24.0 mm
- Collar ring diameter – 30.0 mm
- Opening angle – 180°
- Wire cross section – 0.14 mm²
- Max voltage – 50V
- No of wires – 16
- Max Current – 0.8A
Suitable For:
- Type of door leaf – Timber
- Rebate – Unrebated
- Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame
Hinges are priced as singles.
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
Application on steel frames is subject to special frame facings.
There are two connection adapters needed per hinge.
Available in a range of finishes.
Fixings included.
TECTUS Energy Datasheet ⬀
TE 340 3D Energy Datasheet ⬀
TE 340 3D Energy Product Selector ⬀
Estimated delivery time between 2-3 working days.
