Product Description

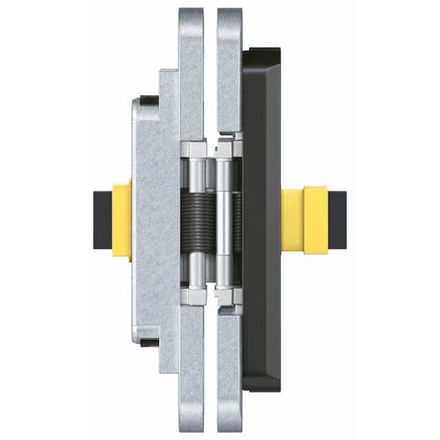

Energy transfer is crucially important in the installation and operation of electric components in high-quality doors. With TECTUS Energy, the door leaf receives a guaranteed and permanent energy supply from the frame, without weakening the structure of either the door or the frame. The technology provided by TECTUS Energy offers compatibility with all the most popular designs for locks and fittings.
Product Features:
- With permanent energy transfer
- Individual connection adapter options
- Completely concealed hinge system
- For timber, steel, or aluminium frames
- For unrebated and rebated flush residential doors
- 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.5 mm)
- Maintenance-free slide bearings
Technical Details:
- Load capacity – 60.0 kg

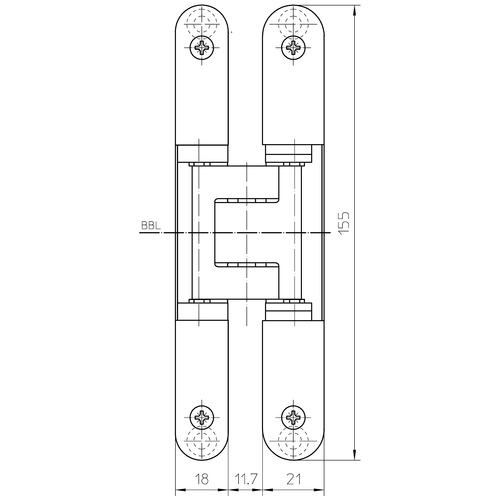

- Overall length – 155.0 mm
- Width (door part) – 18.0 mm
- Width (frame part) – 21.0 mm
- Cutter diameter – 16.0 mm
- Collar ring diameter – 30.0 mm
- Opening angle – 180°
- Wire cross section – 0.14 mm²
- Max Voltage – 50V
- No of wires – 16
- Max current – 0.8A
Suitable for:
- Type of door leaf – Timber
- Rebate – rebated flush / unrebated
- Type of frame – aluminium frame, blind frame, block frame, casing frame, steel frame
Hinges are priced as singles.
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
Application on steel frames is subject to special frame facings.
There are two connection adapters needed per hinge.
Available in a range of finishes.
Fixings included.
TECTUS Energy Datasheet ⬀
TE 240 3D Energy Datasheet ⬀
TE 240 3D Energy Product Selector ⬀
Estimated delivery time between 2-3 working days.
