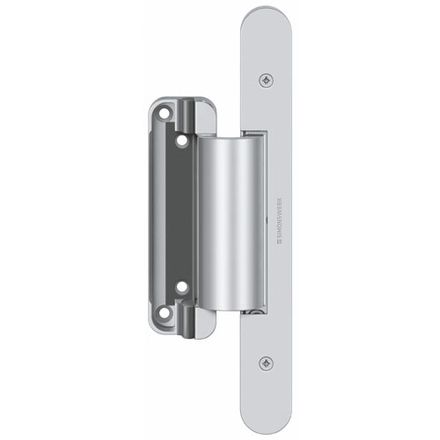

Simonswerk Tectus TE 680 3D FD Concealed Hinge

£141.70



For rebated timber entrance doors



SKU: TE 680 3D FD Categories: , , Tag:

Product Description

Product Features:

  • Concealed hinge system
  • For rebated timber entrance doors
  • Sideways closed hinge body for a homogeneous mortise appearance
  • 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.5 mm)
  • Continuous sealing system
  • 18 mm overlap width
  • Maintenance-free slide bearings

Technical Details:

  • Load capacity – 160.0 kg
  • Width (door part) – 40.5 mm
  • Length (door part) – 140.0 mm
  • Width (frame part) – 30.0 mm
  • Length (frame part) – 250.0 mm
  • Cutter diameter – 20.0 mm
  • Collar ring diameter – 30.0 mm
  • Opening angle – 180°

Suitable for:

  • Type of door leaf – Timber
  • Rebate – Rebated
  • Type of frame – blind frame, block frame

Hinges are priced as singles.
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
With an opening position of 180° the door may have to be fixed additionally.
Fixings included.

TE 680 3D FD   Datasheet ⬀
TE 680 3D FD   Product Selector ⬀

Read more

Estimated delivery time between 2-3 working days.
