Sugatsune HES3D-90 Concealed Hinge

Name: Sugatsune HES3D-90 Concealed Hinge
Brand: Price and Oliver Ltd
SKU: HES3D-90
Availability: InStock
Rating: 5 (1 reviews)

£42.95 – £44.95

Sugatsune concealed hinges offer an aesthetically pleasing ‘invisible’ fixing. They can be used wherever the clean lines of a knuckle-free hinge system are required.

Finish

SKU: HES3D-90 Categories: Concealed Hinges, Door Furniture, Hinges Tag: Product Focus

Description
Additional information

Product Description

Thin profile allows for shallow mortice and makes installation easier
Can be split into two parts – one for the frame and one for the flap – making installation easy

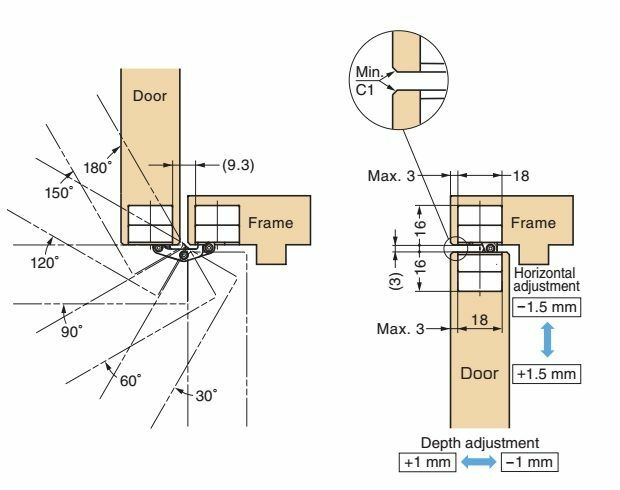

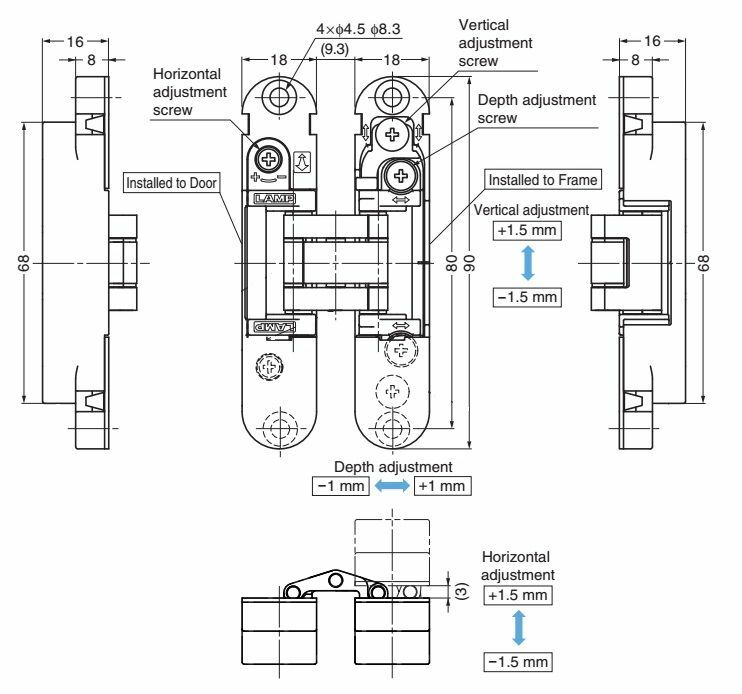

3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge installation
Size 90mm x 18mm
Minimum door thickness – 23mm
Maximum door width – 600mm
Maximum door height – 1500mm
Opening Angle – 180º
Maximum weight – 2 hinges 12kg, 3 hinges 16kg

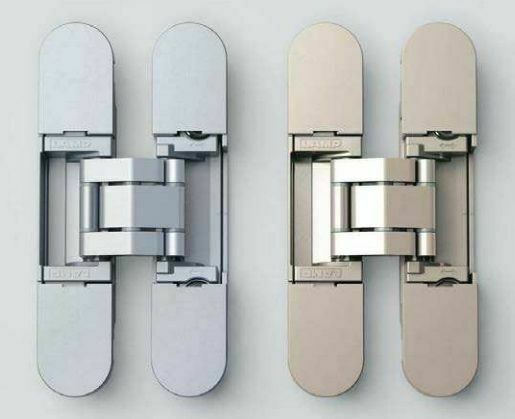

Available in Satin Chrome, and Satin Nickel

Hinges are priced as singles.

HES3D-90 Datasheet ⬀
Selection Tool for HES concealed hinges ⬀

Estimated delivery time between 2-3 working days.
